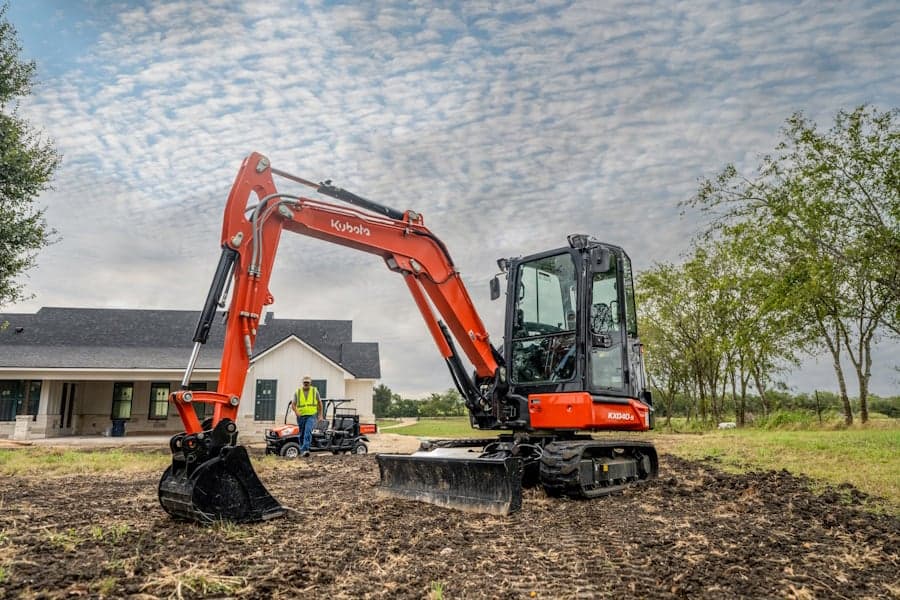

KX040-5
COMPACT EXCAVATORS
Call for Pricing

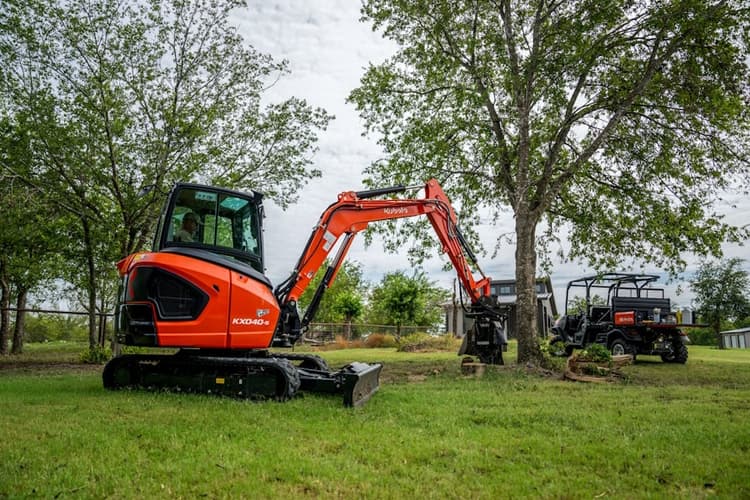

Keyless start
Keyless start
7 inch full color LCD monitor with jog dial controls
7 inch full color LCD monitor with jog dial controls

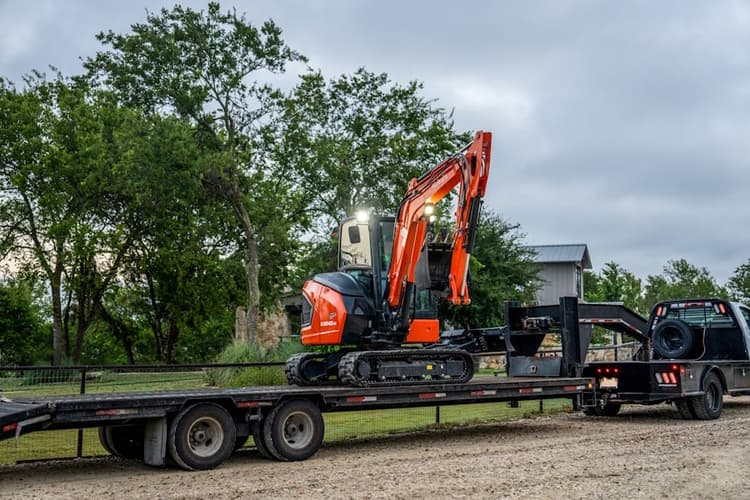

Rearview camera - optional
Rearview camera - optional

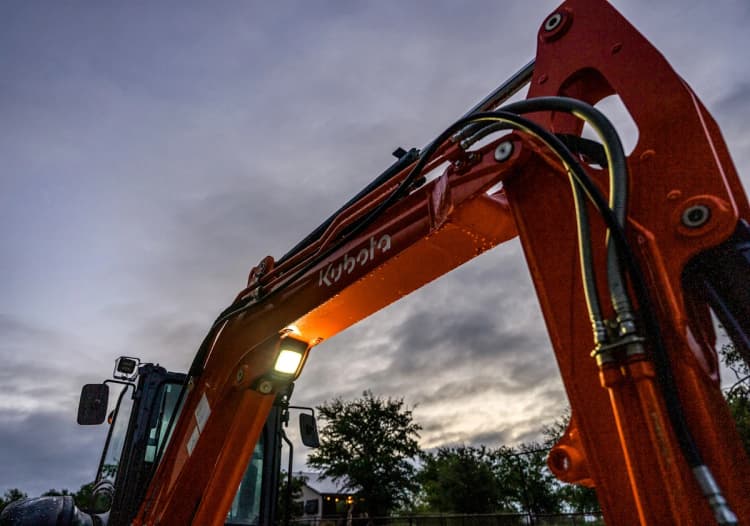

LED work lights
LED work lights

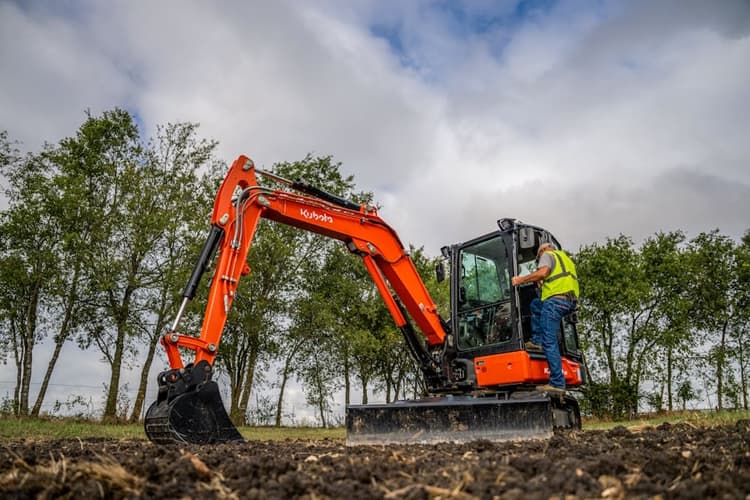

Enclosed cab or open canopy ROPs options
Enclosed cab or open canopy ROPs options

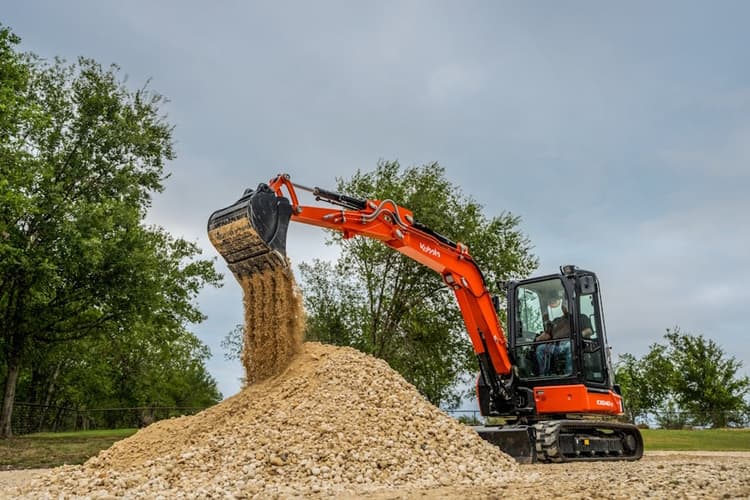

Quieter cab for lower operator noise
Quieter cab for lower operator noise

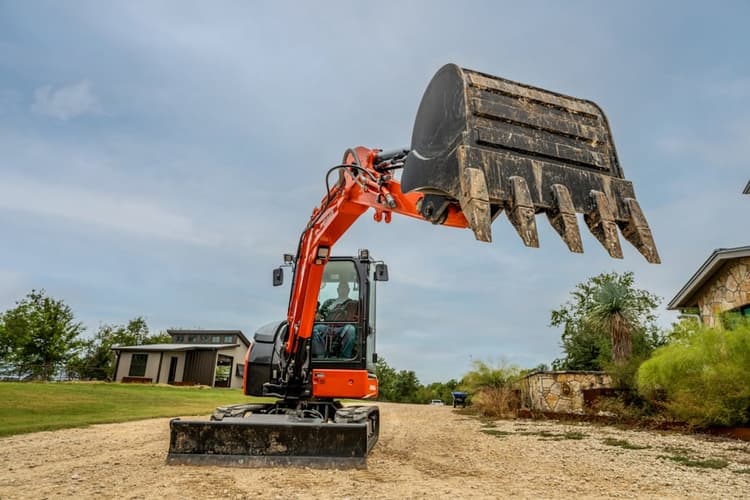

6-way dozer blade, angle blade and straight blade options available
6-way dozer blade, angle blade and straight blade options available

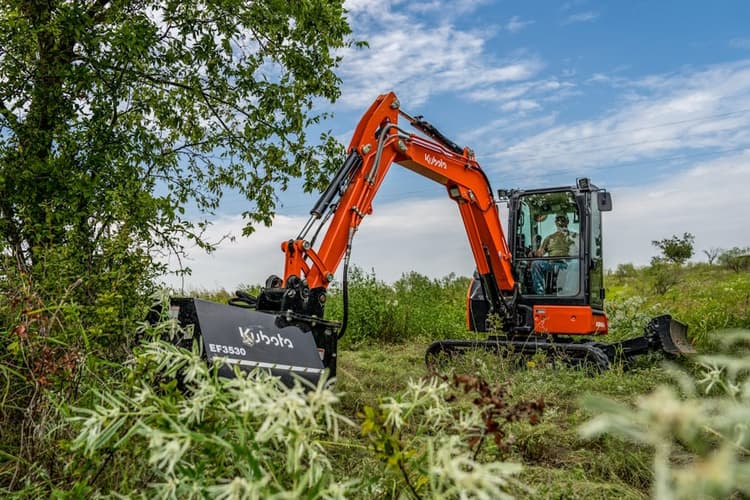

Redesign to the AUX hydraulic system provides easier multifunction capabilities
Redesign to the AUX hydraulic system provides easier multifunction capabilities

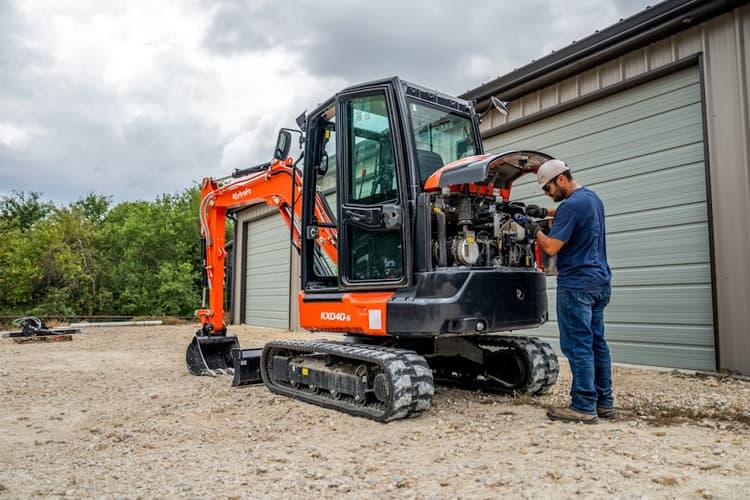

KubotaNOW telematics pre wired at factory
KubotaNOW telematics pre wired at factory
KX040-5
HP
Call for Pricing
Specifications
Arm Breakout Force, lbs (kgf)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Blade Height, in (mm)
Blade Width, ft (mm)
Bucket Breakout Force, lbs (kgf)
Crawler Length, ft (mm)
Displacement (cu. in.)
Engine Model
Fuel Reservoir, gal (l)
Ground Contact Pressure psi, kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, gal (l)
Min. Ground Clearance, in (mm)
Operating Weight, lbs (kg)
Overall Height, ft (mm)
Overall Length, ft (mm)
Overall Width, ft (mm)
Pump Capacity, GPM (LPM)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Arm Breakout Force, lbs (kgf)
4114 (1866)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
17.2 (65) / 9.8 (37)
Blade Height, in (mm)
13.8in (350) / 1ft 3.2in (385), Angle Blade: 1ft 3.2in (385)
Blade Width, ft (mm)
5ft 6.9in (1700) / 5ft 10.9in (1800), Angle blade: 5ft 10.9in (1800)
Bucket Breakout Force, lbs (kgf)
9397 (4262)
Crawler Length, ft (mm)
7'1.6in (2175)
Displacement (cu. in.)
111.4
Engine Model
Kubota D1803-CR-TE5-BH5 / D1803-CR-TE5-BH6
Fuel Reservoir, gal (l)
17.4 (66)
Ground Contact Pressure psi, kgf (cm2)
Rubber: 4.5 (31.1) / 4.7 (32.1), Steel: 4.6 (31.5) / 4.7 (32.5), Angle Blade Rubber: 4.7 (32.6) / 4.9 (33.6), Angle Blade Steel: 4.8 (32.9) / 4.9 (33.9), Rubber canopy/cab: 4.9 (33.8) / 5.0 (34.8), Steel canopy/cab: 4.9 (34.1) / 5.1 (35.1)
Horsepower (gross)
40.3
Hydraulic Oil Reservoir / System, gal (l)
9.8 (37) / 17.7 (65)
Min. Ground Clearance, in (mm)
13in (330)
Operating Weight, lbs (kg)
Rubber: 9182-9480 (4165-4300) / 9965-10251 (4520-4650) Steel: 9348-9645 (4240-4375) / 10119-10417 (4590-4725), Angle Blade Rubber: 9623 (4365) / 9910 (4495), Angle Blade Steel: 9777 (4435) / 10075 (4570)
Overall Height, ft (mm)
8ft 1.6in (2480) / 8ft 2in (2490)
Overall Length, ft (mm)
16ft 8.2in (5085)
Overall Width, ft (mm)
5ft 6.9in - 5ft 10.9in (1700-1800)
Pump Capacity, GPM (LPM)
29.1 (110.0)
Traveling Speed: High, mph (kph)
3.1 (5.0)
Traveling Speed: Low, mph (kph)
1.7 (2.7)
